$11,249.00

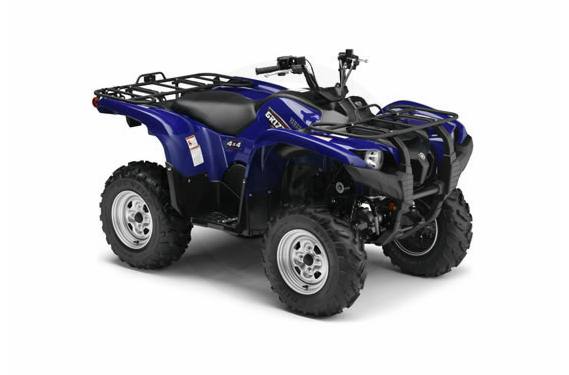

2009 Yamaha Grizzly 550 FI EPS
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Excellent power to weight ratio
  • Electronic Fuel Injection
  • Electric Power Steering (EPS)
Engine
  • Engine: 4-stroke, SOHC, liquid cooled, 4-valve, single
  • Displacement: 558 cc
  • Bore and Stroke: 92mm x 84 mm
  • Compression Ratio: 9.3 : 1
  • Carburetion: Mikuni Electronic Fuel Injection w/40mm Big Bore throttle bodies and TPS
  • Ignition: computerized DC-CDI with 32 bit ECU
  • Starting: electric w/auto-decompression
  • Transmission: Ultramatic (sealed variable v-belt), w/ L-H-N-R and Park, 4-wheel full-time engine breaking
  • Final Drive: On-command push button 2WD / 4WD / 4WD diff. lock, direct shaft drive
Chassis
  • Suspension (Front): independent, dual A-arm, with gull-wing lower A-arm, and adjustable shocks
  • Suspension (Rear): independent, reverse mounted dual A-arm with sway bar, adjustable shocks
  • Brakes (Front): hydraulic discs
  • Brakes (Rear): hydraulic discs
  • Tires (Front): Dunlop KT421 tubeless, AT25 x 8-12
  • Tires (Rear): Dunlop KT425 tubeless, AT25 x 10-12
Critical Data
  • Length: 2065 mm (81.3")
  • Width: 1180 mm (46.5")
  • Height: 1240 mm (48.8")
  • Wheelbase: 1250 mm (49.2")
  • Ground Clearance: 300 mm (11.8")
  • Seat Height: 905 mm (35.6")
  • Dry Weight: 272 kg (600 lb)
  • Fuel Capacity: 20 litres (5.3 U.S. gal)
  • Colour(s): Dark Blue, Red, Dark Green, Black
Additional Features
  • Aluminum cylinder with ceramic composite plating for improved durability
  • Roller bearing rocker arms for reduced friction and improved engine performance
  • Forged piston and carburized Chrome-Moly connecting rod for improved durability
  • Revised intake and exhaust ports
  • New throttle lever for reduced lever effort
  • Airbox design has centrifugal debris trap to improve air flow
  • Flat type foam air filter for easy cleaning
  • Straight drive shaft layout for reduced vibration and improved durability
  • Gull-wing front a-arms for improved ground clearance
  • Polyethylene ball joint boots, front and rear
  • Air cushion seat to provide comfort on those long rides.
  • Floor boardwith large holes for mud evacuation, and special rugs to avoid buildup from underneath.
  • Water resistant storage
  • Centralize wiring layout, positioned for improved protection against the elements.
  • LCD Gauge includes Odometer, Trip 1, Trip 2, Clock, Fuel gauge and Gear position
  • Warning indicators: Engine, Water Temp., Reverse, Neutral, Parking, High Range, Low Range and LCD Drive / Differential Lock map .
  • 35W Halogen headlight bulbs
  • Neodymium hi-power magnet for improved output, charging capacity and light weight.
  • Oil fed stator for improved cooling and reliability
  • Forged Aluminum steering knuckle
  • Gate type transmission shifter for improved shift feel.
  • Cartridge type oil filter located to the front of the engine for improved cooling and simplified maintenance

Specifications

Engine
Engine Type 4-stroke, SOHC, liquid cooled, 4-valve
Displacement 558 cc
Bore x Stroke 92 x 84 mm
Cylinders Single
Engine Cooling Liquid
Fuel System Mikuni Electronic Fuel Injection w/40 mm Big Bore throttle bodies and TPS
Starting System Electric w/auto-decompression
Chassis
Front Suspension Independent, dual A-arm, with gull-wing lower A-arm, and adjustable shocks
Front Brake Type Hydraulic discs
Front Tires Dunlop KT421 tubeless, AT25 x 8-12
Rear Suspension Independent, reverse mounted dual A-arm with sway bar, adjustable shocks
Rear Brake Type Hydraulic discs
Rear Tires Dunlop KT425 tubeless, AT25 x 10-12
Dimensions/Capacities
Dry Weight 600 lbs (272 kg)
Fuel Capacity 5.3 gal (20 l)
Ground Clearance 11.8 in. (300 mm)
Machine Dimensions (LxWxH) 81.3 x 46.5 x 48.8 in. (2065 x 1180 x 1240 mm)
Wheelbase 49.2 in. (1250 mm)
Drive Train
Final Drive On-command push button 2WD / 4WD / 4WD diff. lock, direct shaft drive
Transmission Ultramatic (sealed variable v-belt), w/ L-H-N-R and Park, 4-wheel full-time engine breaking
General
Odometer LCD
Lighting 35W Halogen headlight bulbs
Colors Dark Blue, Red, Dark Green, Black

Compare Models

 Print








Year 2009
Manufacturer Yamaha
Model Grizzly 550 FI EPS
Style Utility
MSRP* $11,249.00
Chassis
Front Suspension Independent, dual A-arm, with gull-wing lower A-arm, and adjustable shocks
Front Travel
Front Brake Type Hydraulic discs
Front Tires Dunlop KT421 tubeless, AT25 x 8-12
Rear Suspension Independent, reverse mounted dual A-arm with sway bar, adjustable shocks
Rear Travel
Rear Brake Type Hydraulic discs
Rear Tires Dunlop KT425 tubeless, AT25 x 10-12
Frame
Dimensions/Capacities
Dry Weight 600 lbs (272 kg)
Front Rack Capacity
Rear Rack Capacity
Towing Capacity
Fuel Capacity 5.3 gal (20 l)
Ground Clearance 11.8 in. (300 mm)
Machine Dimensions (LxWxH) 81.3 x 46.5 x 48.8 in. (2065 x 1180 x 1240 mm)
Wheelbase 49.2 in. (1250 mm)
Drive Train
Drive Train
Final Drive On-command push button 2WD / 4WD / 4WD diff. lock, direct shaft drive
Transmission Ultramatic (sealed variable v-belt), w/ L-H-N-R and Park, 4-wheel full-time engine breaking
Engine
Engine Type 4-stroke, SOHC, liquid cooled, 4-valve
Displacement 558 cc
Bore x Stroke 92 x 84 mm
Cylinders Single
Engine Cooling Liquid
Fuel System Mikuni Electronic Fuel Injection w/40 mm Big Bore throttle bodies and TPS
Starting System Electric w/auto-decompression
Alternator
General
Speedometer
Tachometer
Odometer LCD
Lighting 35W Halogen headlight bulbs
Colors Dark Blue, Red, Dark Green, Black
